12mm - 1/2" Hy-Gear Perforated


Tridon 1/2" - 12mm Hy-Gear perforated hose clamps are suitable for most common household and automotive applications. The bands have clean punched rectangular perforations that hold strong and connect easily.



Chat Now

Material Specifications:

Band Material: 1.4301 - 304SS
Housing Material: 1.4301 - 304SS
Screw Material: 1.4303 - 305SS

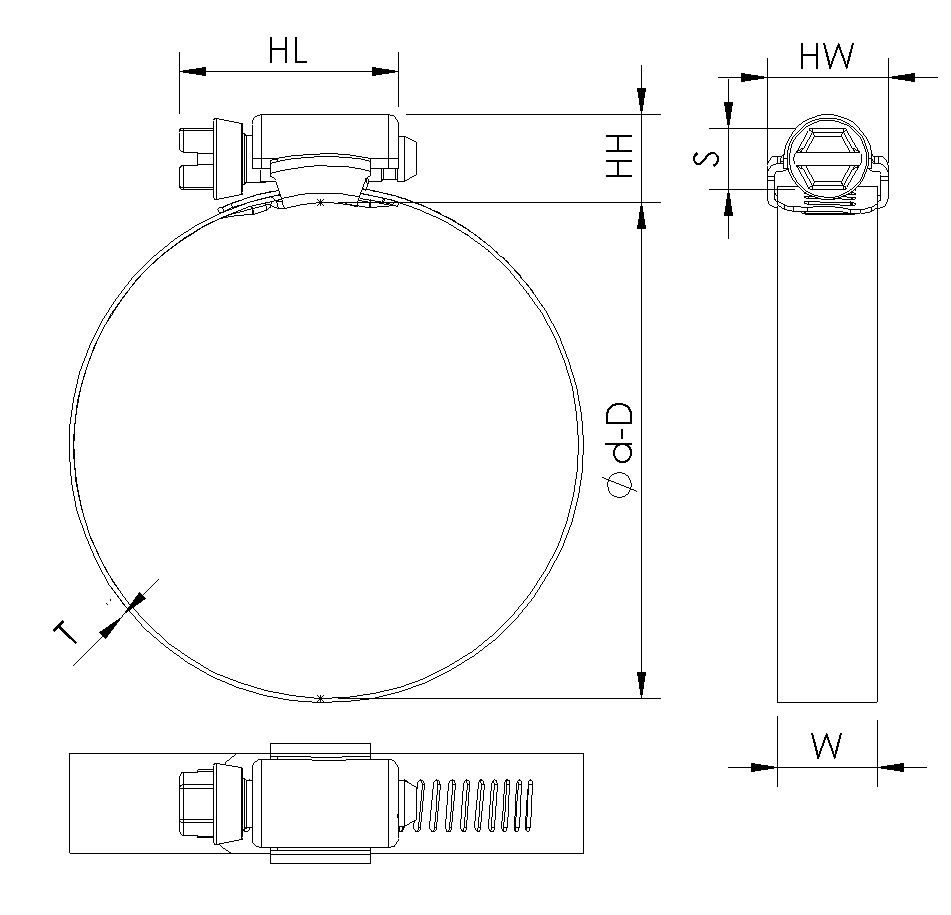

Band Thickness Max: 0.6
Band Width Max (mm): 12.7
Screw Head Hex Size (mm): 8
Max Recommended Installation Torque (Nm): 4
Housing Length Max HL (mm): 30.5




Article Number
Clamping Range D
SAE Size
670300012256
20-32
12
670300016256
21-38
16
670300020256
21-44
20
670300024256
24-51
24
670300028256
26-57
28
670300032256
13-63
32
670300036256
19-70
36
670300040256
26-76
40
670300044256
32-83
44
670300048256
38-89
48
670300052256
45-95
52
670300056256
51-101
56
670300060256
57-108
60
670300064256
64-114
64
670300072256
76-127
72
670300080256
89-140
80
670300096256
114-165
96
670300104256
127-178
104
