Tridon Flex-Gear LD 14mm - 9/16" Perforated CS


Tridon Flex-Gear LD 14mm - 9/16" Perforated CS
Purchase Tridon Flex-Gear LD 14mm - 9/16" Perforated CS
  • Tridon Flex-Gear LD 14mm - 9/16" Perforated CS

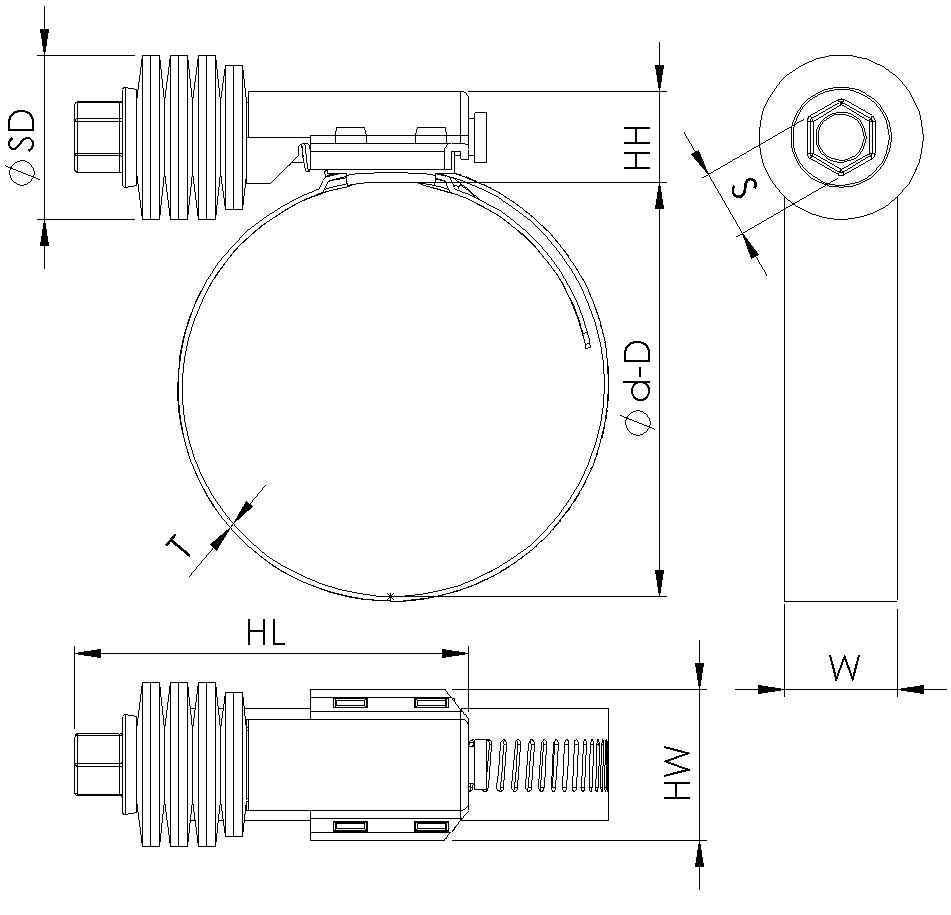

  • Tridon Flex-Gear LD 14mm Perforated CS - 9/16" - all stainless steel clamps use a Belleville spring design to eliminate “cold flow” leakage in light duty applications and adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.

  • Band Material: 300SS, Screw: Plated Carbon Steel
  • Band Thickness Max: 0.64
  • Band Width Max (mm): 14.4
  • Screw Head Hex Size (mm): 8
  • Max Recommended Installation Torque (Nm): 5.6
  • Housing Width Max HW (mm): 19.0
  • Housing Height Max HH (mm): 11.2




Article Number Clamping Range
450040009 13-23
450040010 14-27
450040012 16-32
450040016 21-38
450040020 20-44
450040024 27-51
450040028 33-57
450040032 40-63
450040036 46-70
450040040 52-76
450040044 59-82
450040048 65-89
