Tridon Snaplock 14.4mm Perforated


Tridon Snaplock 14.4mm Perforated
Purchase Tridon Snaplock 14.4mm Perforated
  • Tridon Snaplock 14.4mm Perforated

  • Tridon Snaplock Quick Release 9/16" - 14mm worm drive clamps are good for closed system applications where the clamp must be disengaged to be applied. The swivel-action locking of screw to band makes installation and removal much faster.

  • Band Material: 200SS, Screw: Plated Carbon Steel

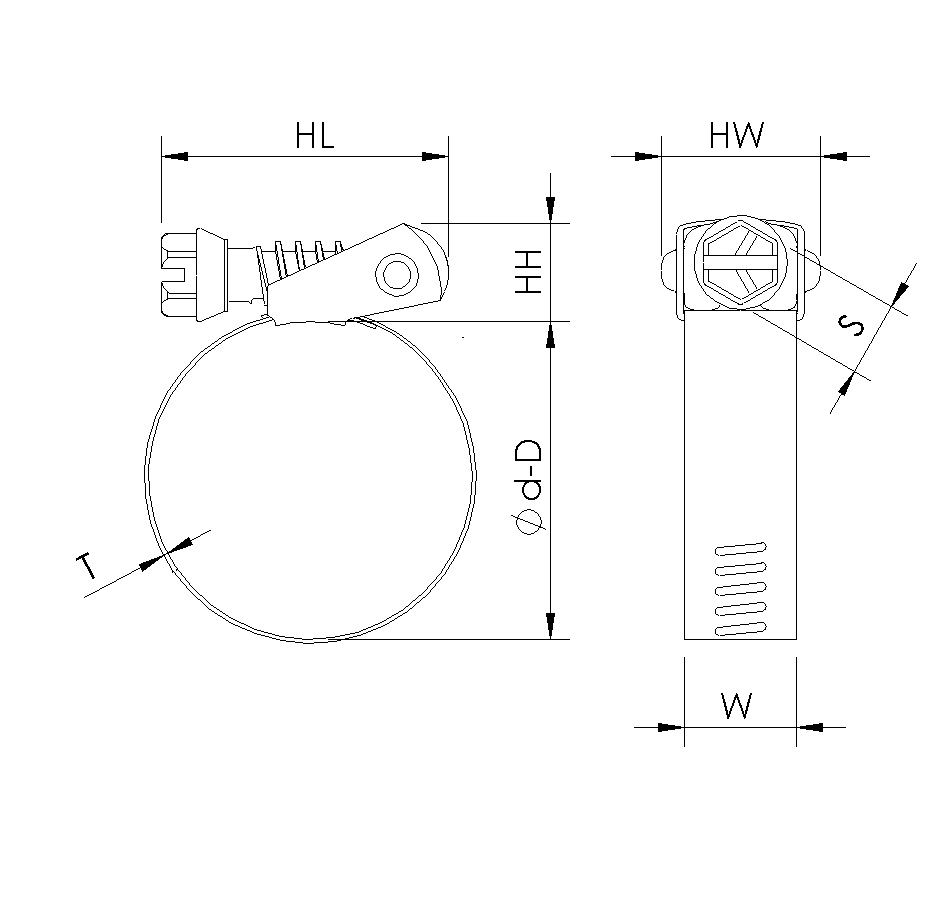

  • Band Thickness Max: 0.58
  • Band Width Max (mm): 14.4
  • Screw Head Hex Size (mm): 8
  • Max Recommended Installation Torque (Nm): 3.4
  • Housing Width Max HW (mm): 20.6
  • Housing Height Max HH (mm): 14.2




Article Number Clamping Range SAE Size
560100012 13-32 12
560100020 19-44 20
560100024 26-51 24
560100028 26-57 28
560100036 26-70 36
560100048 38-89 48
560100056 26-101 56
560100072 51-127 72
560100088 51-152 88
560100104 45-178 104
560100116 45-197 116
560100128 45-216 128
560100136 45-228 136
560100152 51-254 152
560100188 51-311 188
