Tridon Surelock 14.4mm Perforated


Tridon Surelock 14.4mm Perforated
Purchase Tridon Surelock 14.4mm Perforated
  • Tridon Surelock 14.4mm Perforated

  • Tridon Surelock 9/16" - 14mm Quick Engage worm drive clamps have a bind-free, pull-through design for fast installation.  Captured screw design for quick fastening and trouble-free tensioning.  Extended housing engages 25% more screw threads than competitive designs.

  • Band Material: 300SS
  • Band Thickness Max: 0.64
  • Band Width Max (mm): 14.4
  • Screw Head Hex Size (mm): 8
  • Max Recommended Installation Torque (Nm): 5.9

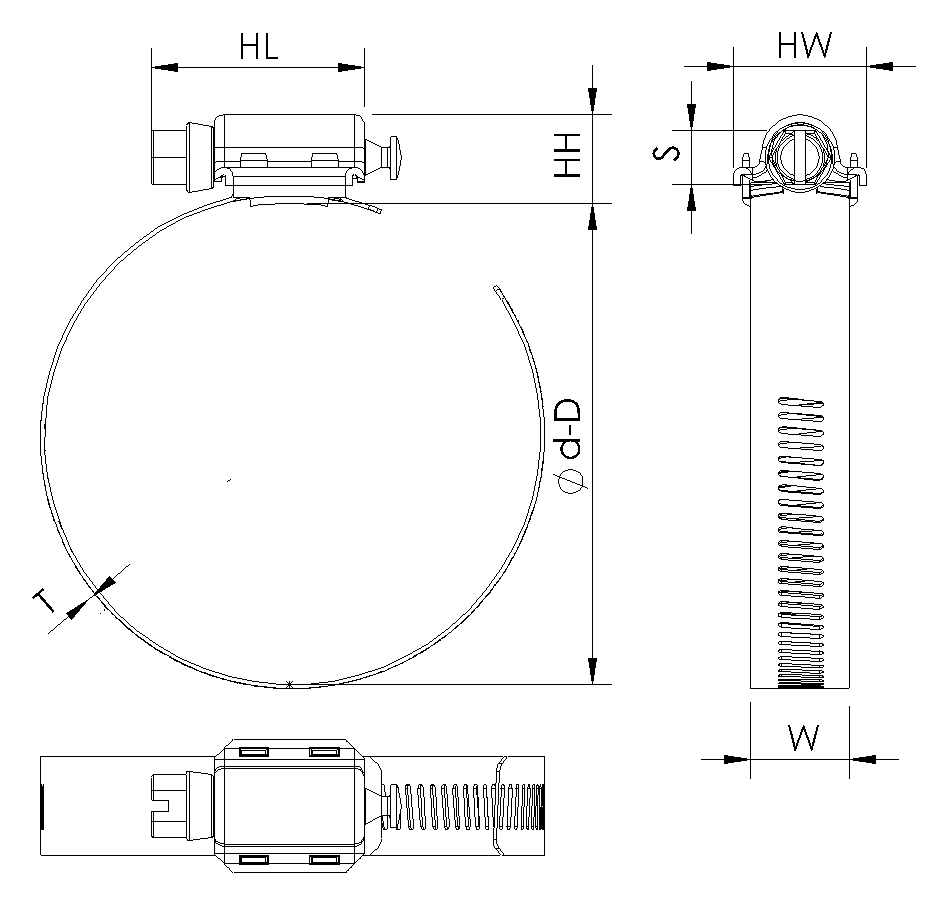

  • Housing Width Max HW (mm): 20.6
  • Housing Height Max HH (mm): 13.0




Article Number Clamping Range
480010012 13-32
480010020 19-44
480010024 19-51
480010028 26-57
480010032 26-63
480010036 22-70
480010048 26-89
480010056 26-101
480010072 51-127
480010080 65-140
480010088 51-152
480010104 51-178
480010116 44-197
480010128 108-216
480010152 102-254
480010180 197-298
480010188 159-311
