Tridon Flex-Gear HD 16mm - 5/8" Perforated CS


Tridon Flex-Gear HD 16mm - 5/8" Perforated CS
Purchase Tridon Flex-Gear HD 16mm - 5/8" Perforated CS
  • Tridon Flex-Gear HD 16mm - 5/8" Perforated CS

  • Tridon Flex-Gear HD 16mm - 5/8" Perforated CS - all stainless steel heavy duty clamps use a Belleville spring design to eliminate “cold flow” leakage in heavy duty applications and adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.

  • Band Material: 300SS, Screw: Plated Carbon Steel
  • Band Thickness Max: 0.74
  • Band Width Max (mm): 16
  • Screw Head Hex Size (mm): 9.5
  • Max Recommended Installation Torque (Nm): 8.5

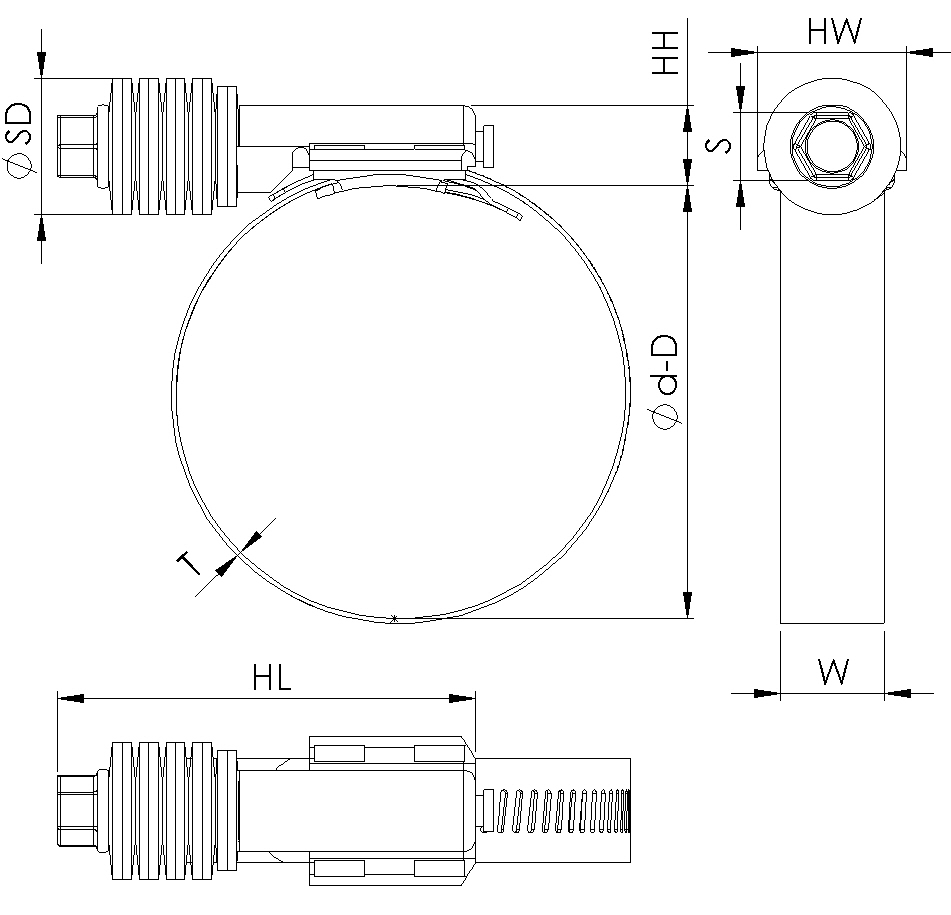

  • Housing Width Max HW (mm): 23.0
  • Housing Height Max HH (mm): 13.0




Article Number Clamping Range
450030175 25-45
450030200 32-54
450030250 45-67
450030300 57-79
450030350 70-92
450030400 83-105
450030450 95-117
450030500 108-130
450030550 121-143
450030600 133-155
450030650 146-168
450030700 159-181
450030750 172-193
450030800 184-206
450030850 197-219
450030900 210-232
