Tridon Power Gear 16mm Perforated


Tridon Power Gear 16mm Perforated
Purchase Tridon Power Gear 16mm Perforated
  • Tridon Power Gear 16mm Perforated

  • Tridon Pow'r Gear 5/8" - 16mm hose clamps are designed for high vibration and stubborn leakage applications such as industrial machinery, heavy truck, farm and off-road equipment engines. Features an extra wide 5/8″ band and a wide profile housing that provides maximum engagement of screw threads to band. Engineered to deliver exceptionally high rates of band tension to handle the toughest sealing jobs.

  • Band Material: 300SS
  • Band Thickness Max: 0.74
  • Band Width Max (mm): 16
  • Screw Head Hex Size (mm): 8
  • Max Recommended Installation Torque (Nm): 10.0

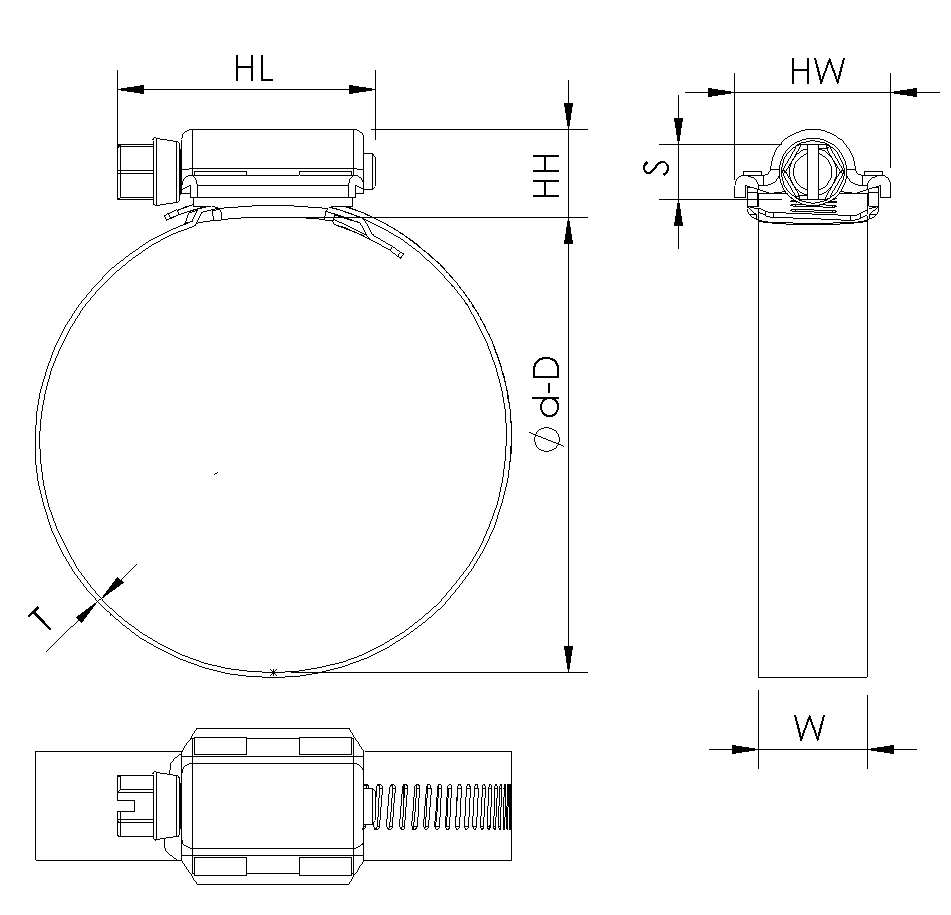

  • Housing Width Max HW (mm): 23.0
  • Housing Height Max HH (mm): 13.0




Article Number Clamping Range
600100175 25-45
600100200 32-54
600100250 45-66
600100300 57-79
600100350 70-92
600100400 83-105
600100450 95-117
600100500 108-130
600100550 121-143
600100600 133-155
600100650 146-168
600100700 159-181
600100750 172-193
600100800 184-206
600100850 197-219
600100900 210-232
