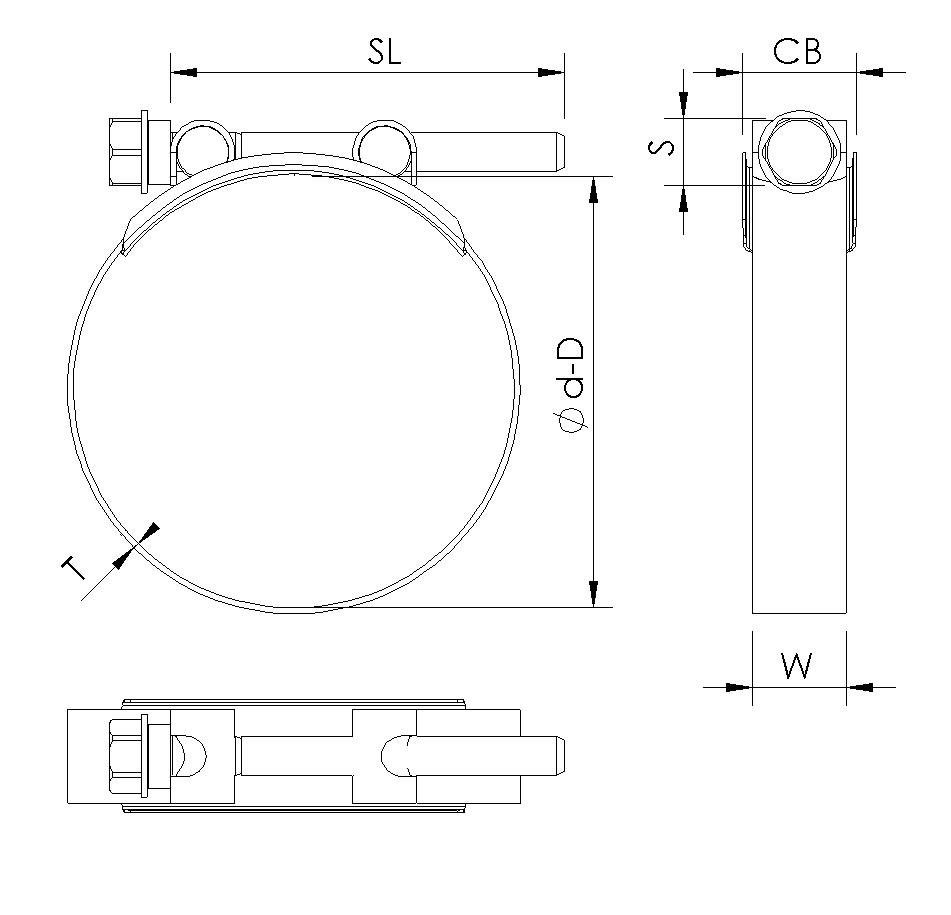

Bolt & Barrel clamp type TPCN W2 material

Bolt and barrel clamps for great pressures and reinforced hoses. The bolt is directly engaged in the threaded barrel and it can thus be fastened with an electrical or pneumatic tool.

Chat Now

Material Specifications:

Band Material: 1.4301/304SS
Screw Material: Plated Carbon Steel, Galvanized
Band Thickness Max: 1.2

Article Number	Clamping Range D	Box Qty
TPCN036039W2059	36-39	100
TPCN040043W2059	40-43	100
TPCN044047W2059	44-47	100
TPCN048051W2059	48-51	100
TPCN052055W2059	52-55	100
TPCN056059W2059	56-59	100
TPCN060063W2059	60-63	100
TPCN064067W2059	64-67	100
TPCN068073W2059	63-69	50
TPCN074079W2059	74-79	50
TPCN080085W2059	80-85	50
TPCN086091W2059	86-91	50
TPCN092097W2059	92-97	50
TPCN098103W2059	98-103	50
TPCN104112W2059	104-112	50
TPCN113121W2059	113-121	50
TPCN122130W2059	122-130	50
TPCN131140W2059	131-140	25
TPCN140148W2059	140-148	25
TPCN149161W2059	149-161	25
TPCN162174W2059	162-174	25
TPCN175187W2059	175-187	20
TPCN188200W2059	188-200	20
TPCN201213W2059	201-213	15
TPCN214227W2059	214-227	15
TPCN227239W2059	227-239	10
TPCN240252W2059	240-252	10
