Tridon CN hose clamps with welded housing and smooth inner band offer a solid value for money solution for a wide range of applications in the general industry and household. Complies with DIN 3017

DIN3017-1 CN 9mm W2 Material

Tridon CN hose clamps with welded housing and smooth inner band offer a solid value for money solution for a wide range of applications in the general industry and household. Complies with DIN 3017



Band Material: 1.4300/302SS
Housing Material: 1.4300/302SS
Screw Material: Plated Carbon Steel

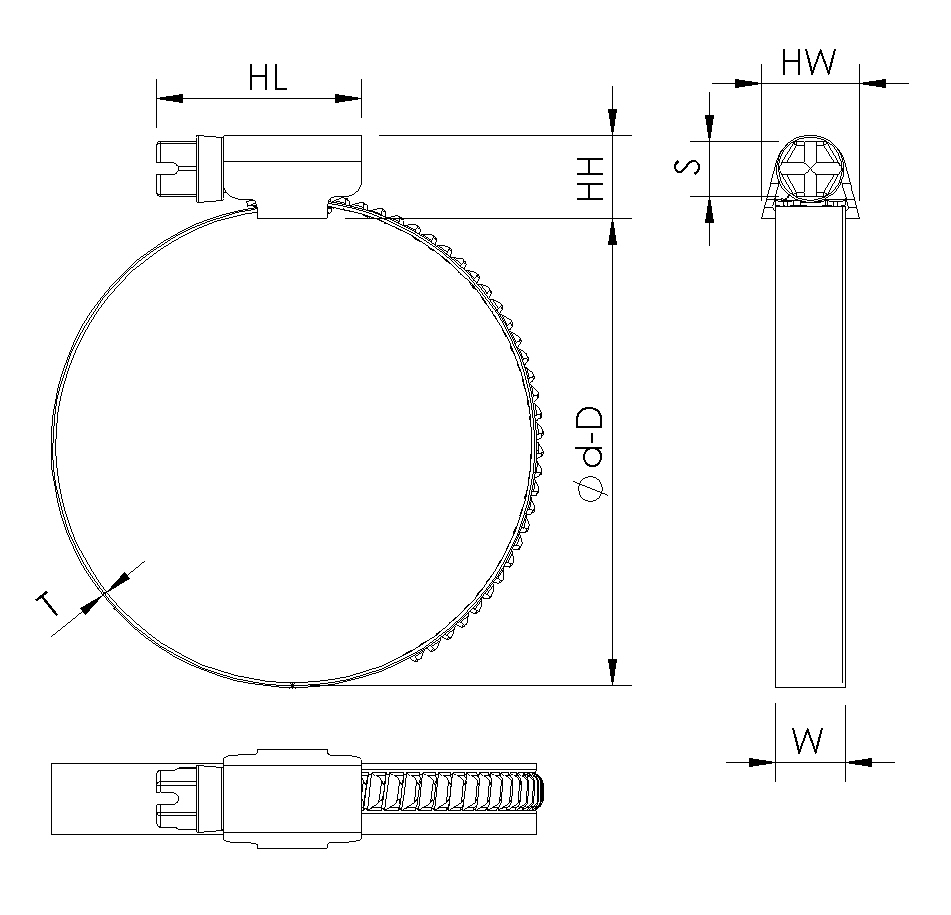

Band Thickness Max: 0.7
Band Width Max (mm): 9
Screw Head Hex Size (mm): 7
Max Recommended Installation Torque (Nm): 3.2
Housing Width Max HW (mm): 13
Housing Height Max HH (mm): 12
Housing Length Max HL (mm): 22.5



Article Number
Clamping Range D
Housing Length Max (mm) (HL)
Box Qty
Band Thickness Max (mm)
CN012059
8-12
22.5
100
0.7
CN016059
8-16
22.5
100
0.7
CN020059
12-20
22.5
100
0.7
CN022059
12-22
22.5
100
0.7
CN025059
16-25
22.5
100
0.7
CN027059
16-27
25.5
100
0.7
CN032059
20-32
25.5
100
0.7
CN035059
25-35
25.5
100
0.7
CN040059
25-40
25.5
100
0.7
CN045059
30-45
25.5
100
0.7
CN050059
32-50
25.5
100
0.7
CN060059
40-60
25.5
50
0.7
CN070059
50-70
25.5
50
0.7
CN080059
60-80
25.5
50
0.7
CN090059
70-90
25.5
25
0.7
CN100059
80-100
25.5
25
0.7
CN110059
290-110
25.5
25
0.7
CN120059
100-120
25.5
25
0.7
CN130059
110-130
25.5
25
0.7
CN140059
120-140
25.5
25
0.7
CN150059
130-150
25.5
25
0.7
CN160059
140-160
25.5
25
0.7
