DIN3017-1 9mm NP W2 Material


DIN3017-1 9mm NP W2 Material
Purchase DIN3017-1 9mm NP W2 Material

  • DIN3017-1 9mm NP W2 Material

  • The Tridon NP Hose Clamp offers a compact design and excellent performance. The unique asymmetric housing design provides roll resistance and uniform sealing strength. The non-perforated band and beveled edges keeps soft hoses from shearing or extruding during installation and final torquing. Tridon NP hose clamps meet DIN3017-1.

  • Band Material: 1.4016/430SS
  • Housing Material: 1.4016/430SS
  • Screw Material: Plated Carbon Steel

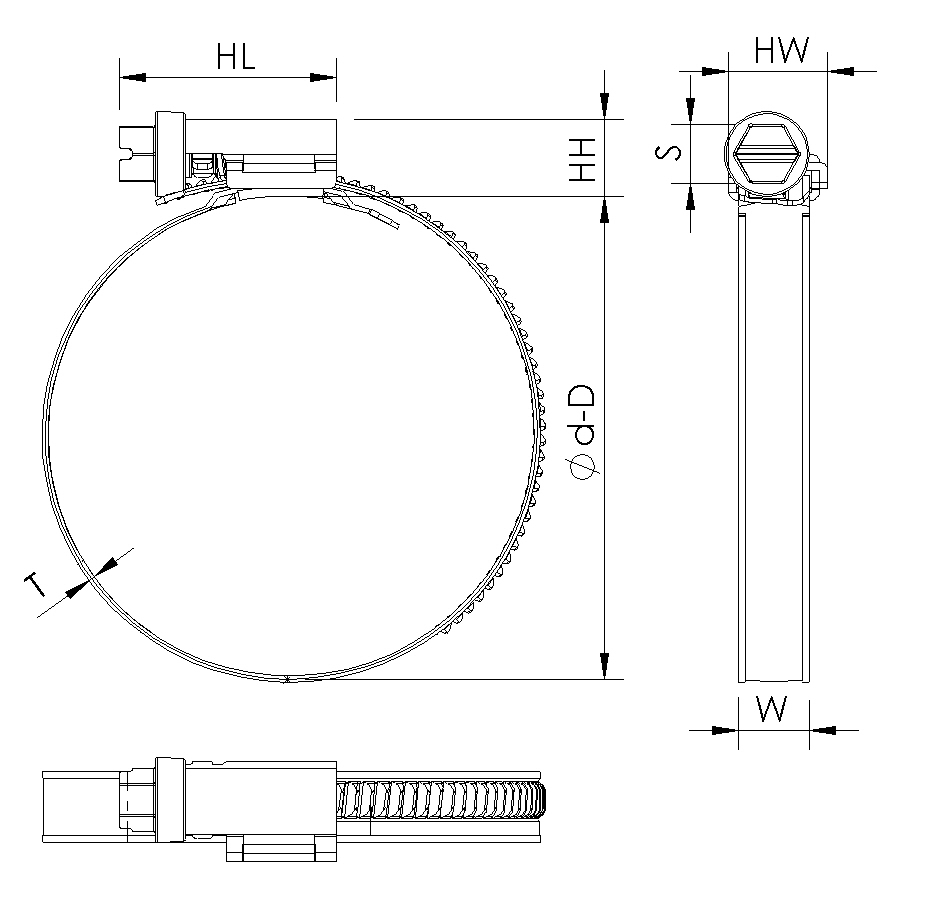

  • Band Thickness Max: 0.64
  • Band Width Max (mm): 9
  • Screw Head Hex Size (mm): 7
  • Max Recommended Installation Torque (Nm): 3.2
  • Housing Width Max HW (mm): 14
  • Housing Height Max HH (mm): 10




Article Number Clamping Range (mm) Housing Length Max (mm) (HL) Box Qty
573120020 12-20 26.5 100
573120022 12-22 26.5 100
573120027 16-27 26.5 100
573120032 20-32 26.5 100
573120035 23-35 26.5 100
573120040 25-40 28.5 100
573120045 30-45 28.5 100
573120050 32-50 28.5 100
573120060 40-60 28.5 50
573120070 50-70 28.5 50
573120080 60-80 28.5 50
573120090 70-90 28.5 25
573120100 80-100 28.5 25
573120110 90-110 28.5 25
573120120 100-120 28.5 25
573120130 110-130 28.5 25
573120140 120-140 28.5 25
573120150 130-150 28.5 25
573120160 140-160 28.5 25
573120170 150-170 28.5 25
573120180 160-180 28.5 25
573120190 170-190 28.5 25
573120200 180-200 28.5 25
