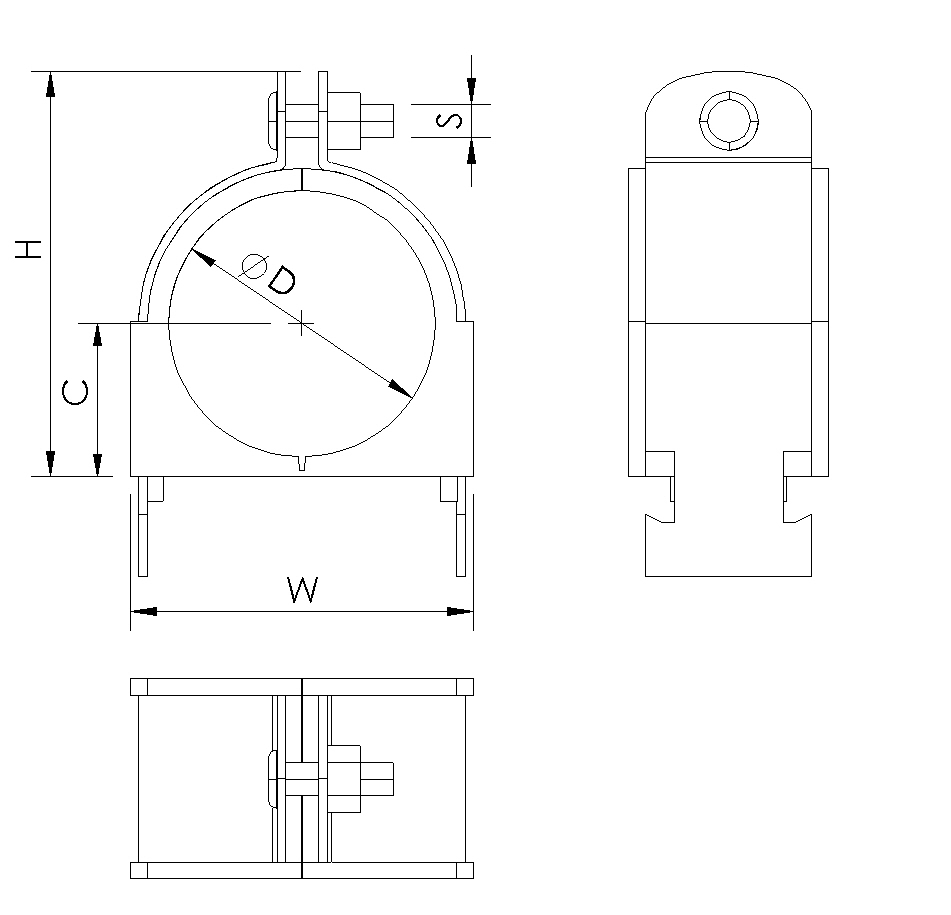

| Article Number | Clamp ID (mm) | Clamp ID (in) | Height H (mm) | Width W (mm) | Dimension C (mm) | NB " | NB (mm) | Fastener size |
|---|---|---|---|---|---|---|---|---|
| ZCC1006 | 6 | 1/4" | 25 | 16 | 7 | 1/4" | ||
| ZCC1006 | 9 | 3/8" | 29 | 21 | 8 | 1/4" | ||
| ZCC1013 | 13 | 1/2" | 34 | 24 | 10 | 1/4" | ||
| ZCC1014 | 14 | 34 | 25 | 11 | 1/4" | 8 | 1/4" | |
| ZCC1016 | 16 | 5/8" | 39 | 27 | 12 | 1/4" | ||
| ZCC1017 | 17 | 39 | 29 | 12 | 3/8" | 10 | 1/4" | |
| ZCC1019 | 19 | 3/4" | 43 | 30 | 13 | 1/4" | ||
| ZCC1021 | 21 | 46 | 33 | 15 | 1/2" | 15 | 1/4" | |
| ZCC1022 | 22 | 7/8" | 46 | 33 | 15 | 1/4" | ||
| ZCC1025 | 25 | 1" | 50 | 37 | 17 | 1/4" | ||
| ZCC1027 | 27 | 53 | 40 | 18 | 3/4" | 20 | 1/4" | |
| ZCC1028 | 28 | 1 1/8" | 53 | 40 | 18 | 1/4" | ||
| ZCC1032 | 32 | 1 1/4" | 56 | 43 | 20 | 1/4" | ||
| ZCC1033 | 33 | 59 | 45 | 21 | 1" | 25 | 1/4" | |
| ZCC1035 | 35 | 1 3/8" | 59 | 46 | 21 | 1/4" | ||
| ZCC1038 | 38 | 1 1/2" | 63 | 50 | 23 | 5/16" | ||
| ZCC1041 | 41 | 1 5/8" | 66 | 53 | 24 | 5/16" | ||
| ZCC1042 | 42 | 69 | 55 | 25 | 1 1/4" | 32 | 5/16" | |
| ZCC1044 | 44 | 1 3/4" | 69 | 56 | 26 | 5/16" | ||
| ZCC1048 | 48 | 1 7/8" | 73 | 59 | 28 | 1 1/2" | 40 | 5/16" |
| ZCC1051 | 51 | 2" | 77 | 62 | 29 | 5/16" | ||
| ZCC1054 | 54 | 2 1/8" | 82 | 65 | 32 | 5/16" | ||
| ZCC1060 | 60 | 2 3/8" | 93 | 72 | 36 | 2" | 50 | 5/16" |
| ZCC1064 | 64 | 2 1/2" | 96 | 75 | 37 | 5/16" | ||
| ZCC1067 | 67 | 2 5/8" | 100 | 78 | 39 | 5/16" | ||
| ZCC1073 | 73 | 2 7/8" | 106 | 84 | 42 | 2 1/2" | 65 | 5/16" |
