SmartSeal

Material Specifications:

Band Material: 1.4310/301SS
Housing Material: 1.4310/301SS
Screw Material: 1.4303/305SS

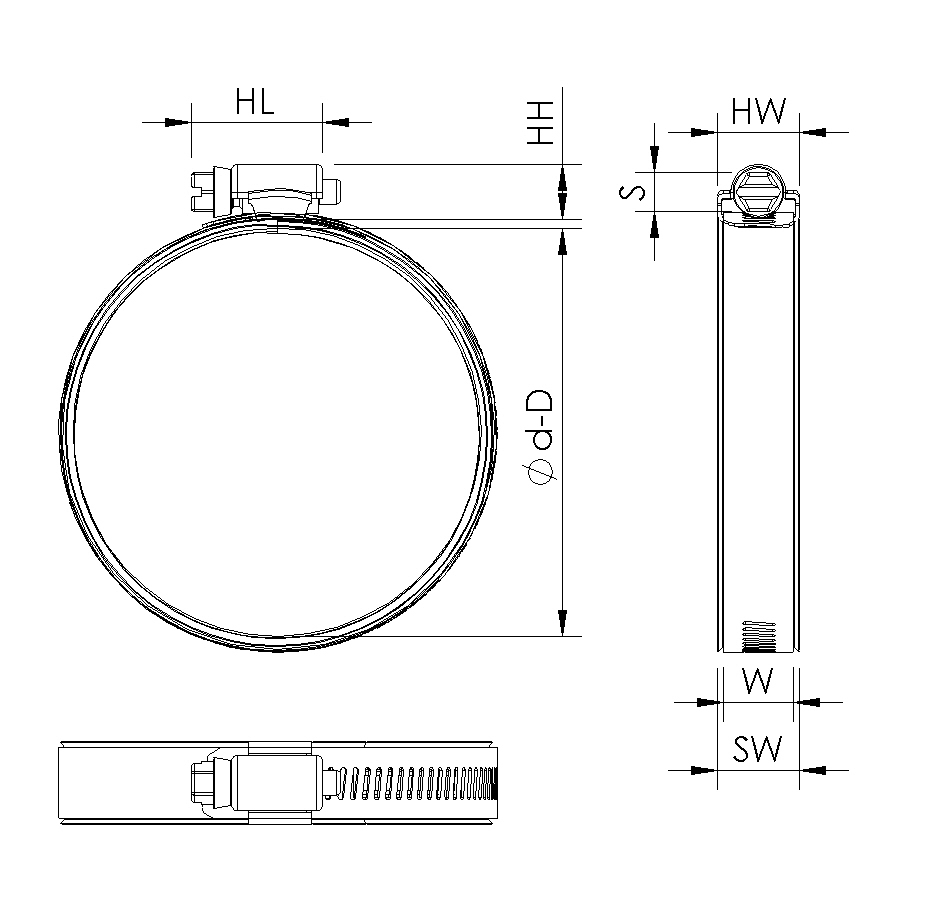

Band Thickness Max: 0.66
Band Width Max (mm): 12.7
Nut Hex Size S (mm): 8
Housing Length Max HL (mm): 27.9

Article Number	Clamping Range D	SAE Size	Housing Length Max (mm) (HL)	Band Thickness Max (mm)
372100016256	28-33	16	27.9	0.66
372100020256	29-40	20	27.9	0.66
372100022256	36-43	22	27.9	0.66
372100024256	38-46	24	27.9	0.66
