Tridon NP-SA 12mm Non-Perforated Spring-Assisted W4 Material


Tridon NP-SA 12mm Non-Perforated Spring-Assisted W4 Material
Purchase Tridon NP-SA 12mm Non-Perforated Spring-Assisted W4 Material

  • Tridon NP-SA 12mm Non-Perforated Spring-Assisted W4 Material

  • The Tridon NP-SA Hose clamp is fitted with a spring assist device which automatically re-tensions to ensure optimal radial clamping force. The Tridon NP-SA hose clamp is the ideal choice for applications under extreme temperature changes, under extremely low temperatures or for the retention of hoses with a tendency of “creeping”/ hose relaxation.

  • Band Material: 1.4301/304SS
  • Housing Material: 1.4301/304SS
  • Screw Material: 1.4310/302SS tin plated
  • Band Thickness Max: 0.79
  • Band Width Max (mm): 12
  • Screw Head Hex Size (mm): 7

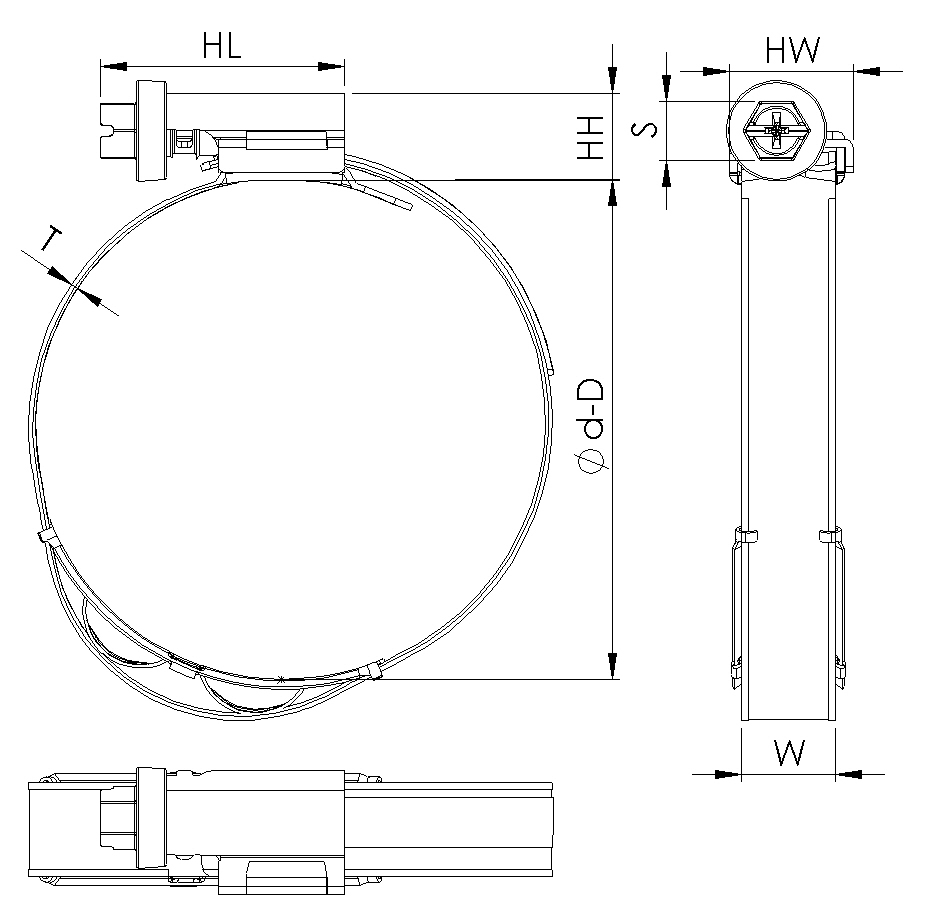

Article Number Clamping Range (mm) Housing Length Max (mm) (HL)
576140027 16-27 32
576140032 20-32 32
576140040 25-40 32
576140045 30-45 32
576140050 30-50 32
576140060 40-60 32
576140065 45-65 32
576140070 50-70 32
576140075 55-75 32
576140080 60-80 32
576140090 70-90 38.5
576140100 80-100 38.5
576140110 90-110 38.5
576140120 100-120 38.5
576140130 110-130 38.5
576140140 120-140 38.5
