Tridon DCL Clamp Snap-Close W4 Material


Tridon DCL clamps made from one-piece with a clasp hooked on a pawl, preventing even accidental release. Clamping force is evenly distributed throughout the clamp. The smooth inside protects the hose from damage. DCL clamps are suitable for mass industrial productions due to their fast and easy install.



Chat Now

Material Specifications:

Band Material: 1.4301/304SS


Article Number

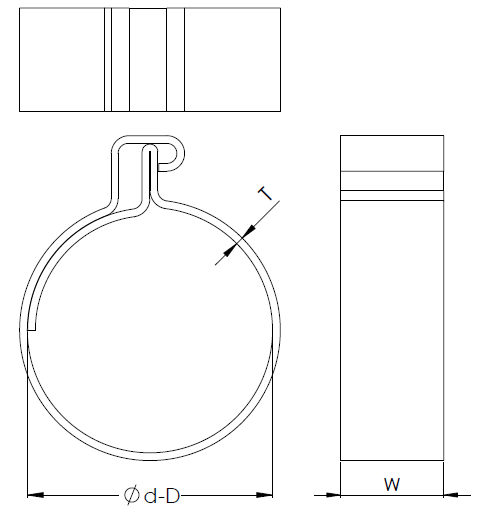

Clamping Range D
Band Width (mm)
Box Qty
DCL080059
8.5 - 9.5
6
1000
DCL085059
9.0 - 10.0
6
1000
DCL090059
9.5 - 11.0
6
1000
DCL095059
10.0 - 11.5
6
1000
DCL100059
10.5 - 11.5
6
1000
DCL105059
11.0 - 12.0
6
1000
DCL110059
11.5 - 12.5
6
1000
DCL115059
12.0 - 13.0
6
1000
DCL120059
12.5 - 13.5
6
1000
DCL125059
13.0 - 14.0
6
1000
DCL130059
13.5 - 14.5
6
1000
DCL135059
14.0 - 15.0
6
1000
DCL140059
14.5 - 15.5
8
1000
DCL145059
15.0 - 16.0
8
1000
DCL150059
15.5 - 16.5
8
1000
DCL155059
16.0 - 17.0
8
1000
DCL160059
16.5 - 17.5
8
1000
DCL165059
17.0 - 18.0
8
1000
DCL170059
17.5 - 18.5
8
1000
DCL175059
18.0 - 19.0
8
1000
DCL180059
18.5 - 19.5
8
1000
DCL185059
19.0 - 20.0
8
1000
DCL190059
19.5 - 21.0
8
1000
DCL195059
20.0 - 21.5
8
1000
DCL200059
20.5 - 22.0
8
1000
DCL205059
21.0 - 22.5
8
1000
DCL210059
21.5 - 23.0
8
1000
DCL215059
22.0 - 23.5
8
1000
DCL220059
22.5 - 24.0
8
1000
DCL225059
23.0 - 24.5
8
1000
DCL230059
23.5 - 25.0
8
1000
DCL235059
24.0 - 25.5
8
1000
