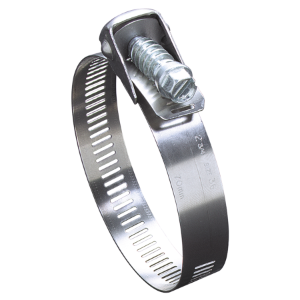

Tridon Snaplock 14.4mm Perforated


Tridon Snaplock Quick Release 9/16" - 14mm worm drive clamps are good for closed system applications where the clamp must be disengaged to be applied. The swivel-action locking of screw to band makes installation and removal much faster.



Chat Now

Material Specifications:

Band Material: 200SS, Screw: Plated Carbon Steel
Band Thickness Max: 0.58
Band Width Max (mm): 14.4
Screw Head Hex Size (mm): 8
Max Recommended Installation Torque (Nm): 3.4
Housing Width Max HW (mm): 20.6
Housing Height Max HH (mm): 14.2
Housing Length Max HL (mm): 38.1


Article Number
Clamping Range D
Housing Length Max (mm) (HL)
Band Thickness Max (mm)
560100012056
13-32
38.1
0.58
560100020056
15-44
38.1
0.58
560100024056
15-51
38.1
0.58
560100028056
15-57
38.1
0.58
560100036056
20-70
38.1
0.58
560100048056
39-89
38.1
0.58
560100056056
24-102
38.1
0.58
560100072056
49-127
38.1
0.58
560100088056
51-152
38.1
0.58
560100104056
45-178
38.1
0.58
560100116056
45-197
38.1
0.58
560100128056
43-216
38.1
0.58
560100136056
45-228
38.1
0.58
560100152056
41-254
38.1
0.58
560100188056
40-311
38.1
0.58
