Tridon Surelock 9/16" - 14mm Quick Engage worm drive clamps have a bind-free, pull-through design for fast installation.  Captured screw design for quick fastening and trouble-free tensioning.  Extended housing engages 25% more screw threads than competitive designs.

Tridon Surelock 14.4mm Perforated



Band Material: 300SS
Band Thickness Max: 0.64
Band Width Max (mm): 14.4

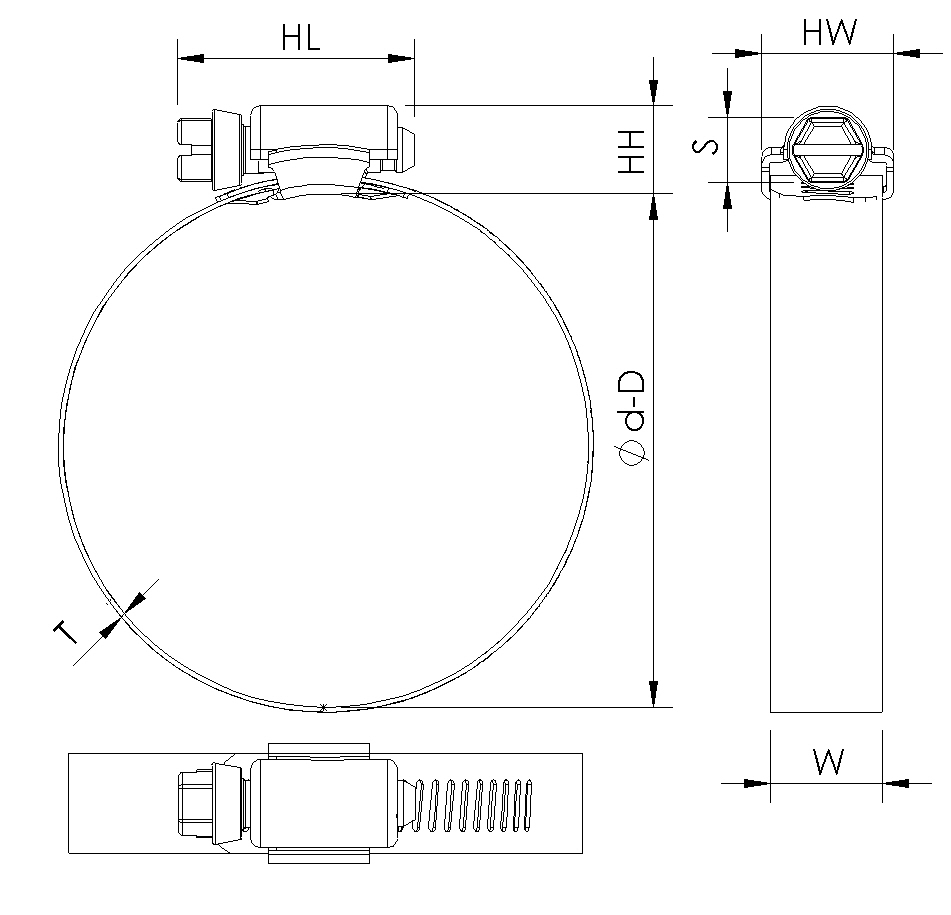

Screw Head Hex Size (mm): 8
Max Recommended Installation Torque (Nm): 5.9
Housing Width Max HW (mm): 20.6
Housing Height Max HH (mm): 13
Housing Length Max HL (mm): 41.9



Article Number
Clamping Range D
Housing Length Max (mm) (HL)
Band Thickness Max (mm)
480010012056
13-32
41.9
0.64
480010020056
19-44
41.9
0.64
480010024056
19-51
41.9
0.64
480010028056
25-57
41.9
0.64
480010032056
32-64
41.9
0.64
480010036056
22-70
41.9
0.64
480010048056
25-89
41.9
0.64
480010056056
25-102
41.9
0.64
480010072056
51-127
41.9
0.64
480010080056
48-140
41.9
0.64
480010088056
51-152
41.9
0.64
480010104056
51-178
41.9
0.64
480010116056
44-196
41.9
0.64
480010128056
108-216
41.9
0.64
480010152056
102-254
41.9
0.64
480010180056
197-298
41.9
0.64
480010188056
159-311
41.9
0.64
