PAS Fixing Clip - W3 Material - 20mm Band


PAS Fixing Clip - W3 Material - 20mm Band
Purchase PAS Fixing Clip - W3 Material - 20mm Band
  • PAS Fixing Clip - W3 Material - 20mm Band

  • Tridon PAS P-Clips are ideal for attaching and retaining hoses, cables and tubes in construction, sanitary and in automotive applications. Common applications are agricultural machinery, boat-building, commercial vehicles, construction equipment etc. The anti-vibration EPDM rubber liner helps to prevents from damage at the clamping area.

  • Band Material: 1.4016/430SS
  • Insulator Material: EPDM

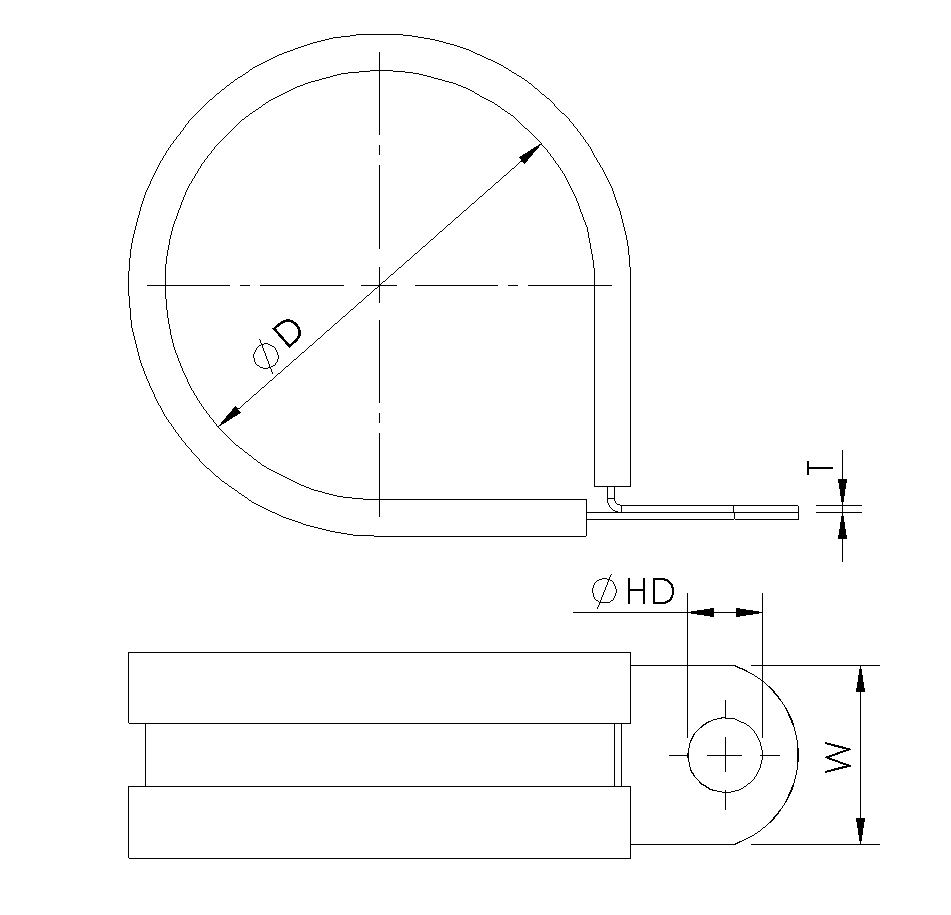

Article Number Clamping Range D (mm) Band Width (mm) Band Thickness (mm) Box Qty
TPAS0200003213 20 20 1.0 50
TPAS0220003213 22 20 1.0 50
TPAS0240003213 24 20 1.0 50
TPAS0250003213 25 20 1.0 50
TPAS0280003213 28 20 1.0 50
TPAS0300003213 30 20 1.0 50
TPAS0350003213 35 20 1.0 50
TPAS0400003213 40 20 1.0 50
TPAS0450003213 45 20 1.0 50
TPAS0500003213 50 20 1.0 50
TPAS0550003213 55 20 1.0 50
TPAS0600003213 60 20 1.0 50
TPAS0650003213 65 20 1.0 50
TPAS0700003213 70 20 1.0 50
TPAS0750003213 75 20 1.0 50
TPAS0800003213 80 20 1.0 50
