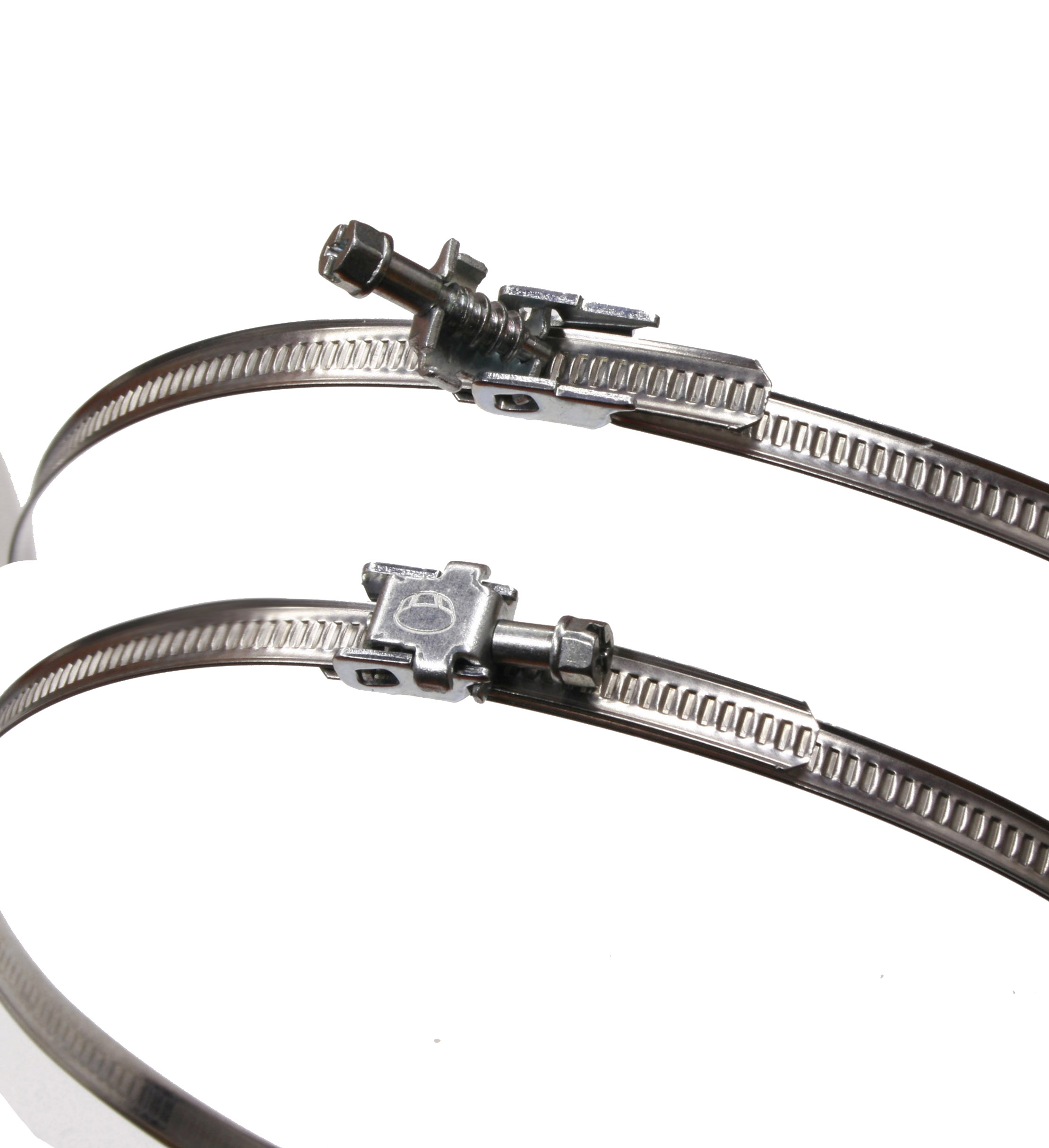

VN 9mm Quick Release Tilt House clamp W2 Material


Tridon VN quick release clamps are ideal for flexible and rigid ventilation hoses. The safety lock ensures that the top of the clamp house can not open after assembly.



Chat Now

Material Specifications:

Band Material: 1.4016/430SS
Housing Material: 1.4016/430SS
Screw Material: Plated Carbon Steel
Band Thickness Max: 0.6
Band Width Max (mm): 9
Screw Head Hex Size (mm): 7
Housing Width Max HW (mm): 16.5
Housing Height Max HH (mm): 10.1


Article Number
Clamping Range D
Box Qty
VN0502000059
30-50
100
VN0602000059
30-60
100
VN0702000059
40-70
100
VN0802000059
40-80
100
VN0902000059
40-90
100
VN1002000059
60-100
100
VN1152000059
60-115
100
VN1252000059
60-125
100
VN1352000059
60-135
100
VN1452000059
60-145
100
VN1752000059
60-175
100
VN2152000059
60-215
100
VN2702000059
60-270
100
VN2882000059
60-288
100
VN3252000059
60-325
100
VN3702000059
60-370
100
VN3802000059
60-380
100
VN4252000059
60-425
100
VN5252000059
60-525
100
VN6602000059
60-660
100
VN7502000059
60-750
100

*W4 available Upon Request
