VN 9mm Quick Release Tilt House clamp W2 Material


VN 9mm Quick Release Tilt House clamp W2 Material
Purchase VN 9mm Quick Release Tilt House clamp W2 Material
  • VN 9mm Quick Release Tilt House clamp W2 Material

  • Tridon VN quick release clamps are ideal for flexible and rigid ventilation hoses. The safety lock ensures that the top of the clamp house can not open after assembly.



  • Band Material: 1.4016/430SS
  • Housing Material: 1.4016/430SS
  • Screw Material: Plated Carbon Steel

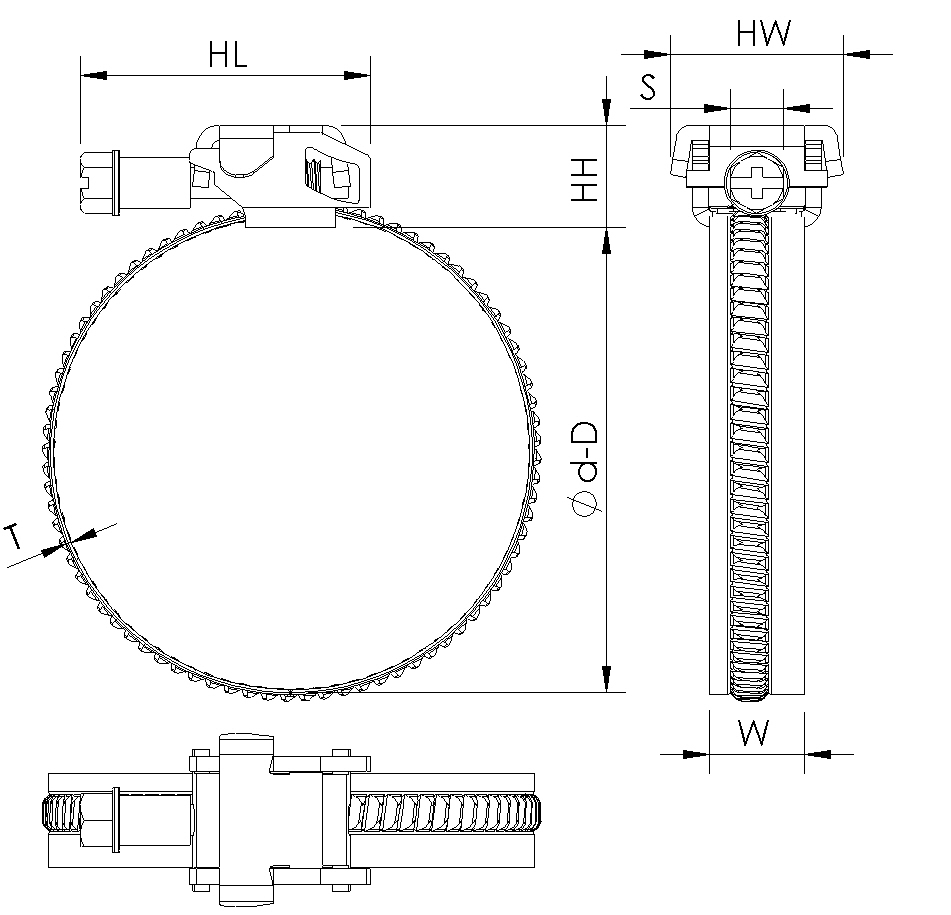

  • Band Thickness Max: 0.6
  • Band Width Max (mm): 9
  • Screw Head Hex Size (mm): 7
  • Housing Width Max HW (mm): 16.5
  • Housing Height Max HH (mm): 10.1




Article Number Clamping Range D (mm) Box Qty Max Torque
VN050200 30-50 100 4
VN060200 30-60 100 4
VN070200 40-70 100 4
VN080200 40-80 100 4
VN090200 40-90 100 4
VN100200 60-100 100 4
VN115200 60-115 100 4
VN125200 60-125 100 4
VN135200 60-135 100 4
VN145200 60-145 100 4
VN175200 60-175 100 4
VN215200 60-215 100 4
VN270200 60-270 100 4
VN288200 60-288 100 4
VN325200 60-325 100 4
VN370200 60-370 100 4
VN380200 60-380 100 4
VN425200 60-425 100 4
VN525200 60-525 100 4
VN660200 60-660 100 4
VN750201 60-750 100 4
