Tridon Waveseal 360 - 14mm


Tridon Waveseal 360 - 14mm
Purchase Tridon Waveseal 360 - 14mm
  • Tridon Waveseal 360 - 14mm

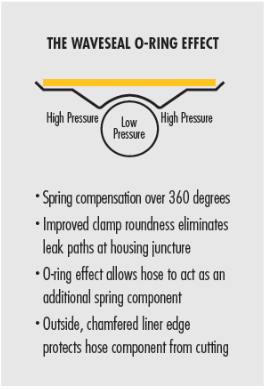

  • Tridon WaveSeal360 clamps are comprised of two main parts, the clamp assembly and the wave profile SmartLiner. The wave profile SmartLiner  is high quality, thin gauge  stainless steel specifically tempered to expand and contract with temperature variations. The clamp rides on SmartLiner so pressure is more evenly distributed around the hose.

  • Band Material: 300SS, Screw 410SS
  • Band Thickness Max: 0.67
  • Band Width Max (mm): 14.27
  • Nut Hex Size S (mm) Material:
  • Max Recommended Installation Torque (Nm): 8.5
  • Housing Width Max HW (mm): 16.9
  • Housing Height Max HH (mm): 13.2
  • Liner Width: 17.3




Article Number Clamping Range
360130016 26-33
360130019 29-38
360130020 29-40
360130022 36-43
360130024 38-46
360130028 43-52
360130032 48-59
360130034 50-62
360130036 53-65
360130040 58-71
360130044 63-78
360130048 67-84
360130052 73-91
360130056 77-97
360130060 82-103
360130064 87-110
360130072 96-122
360130080 105-135
360130088 115-148
360130104 136-173
